Getting back to Jupiter at eastern quadrature... The planets, and all astronomical bodies for that matter, change their positions in the sky for two basic reasons: their own orbital motions and the movements of our observing platform, the Earth. In the case of the planets and our moon, they all revolve in a counterclockwise direction as seen from the vantage point of space looking over the Northern Hemisphere. * As we view the motion of planets from the Earth, they seem to pull away from the sun and then return to it at intervals called their synodic (phase) periods. At certain angular distances from the sun (elongations), names describe these positions. Kindly see the diagram for planetary configurations accessible here. * For superior planets, at greater solar distances than the Earth, (including our orbiting moon), these special positions can be conjunction, in alignment with the sun; opposition, opposite to the sun; or at quadrature, an angle of 90 degrees from the sun. Likewise, inferior planets, closer to the sun than Earth (Mercury and Venus), seem to move from side-to-side of the sun. When an inferior planet passes between the Earth and the sun, astronomers say the planet is in inferior conjunction. When it passes behind Sol on the far side of its orbit, it is in superior conjunction. * Quadrature or opposition will never be terms associated with Mercury and Venus. They will pull away from the sun and reach their greatest elongation from Sol before heading back into the sun's glare. If the position is at its greatest angular extent and the planet sets after sundown, it is at greatest eastern elongation. The inferior planet is as far to the east in the sky as it can travel before orbiting back into the sun's glare. The inferior planet will set after sundown. Likewise, if this angle of greatest elongation is reached in the morning sky, the planet is as far to the west as it can shift, and that angular distance is termed greatest western elongation. The planet rises before the sun. Quadrature for a superior planet is termed as eastern quadrature if the planet is in the evening sky and western quadrature when the planet reaches an elongation from the sun of 90 degrees in the morning heavens. Jupiter is at eastern quadrature on Sunday, April 5, 90 degrees from the sun in the evening sky. Look high in the south, 30 minutes after sundown if it is clear! You cannot miss it. Jove is incredibly bright. Ad Astra!
![]() |
|---|

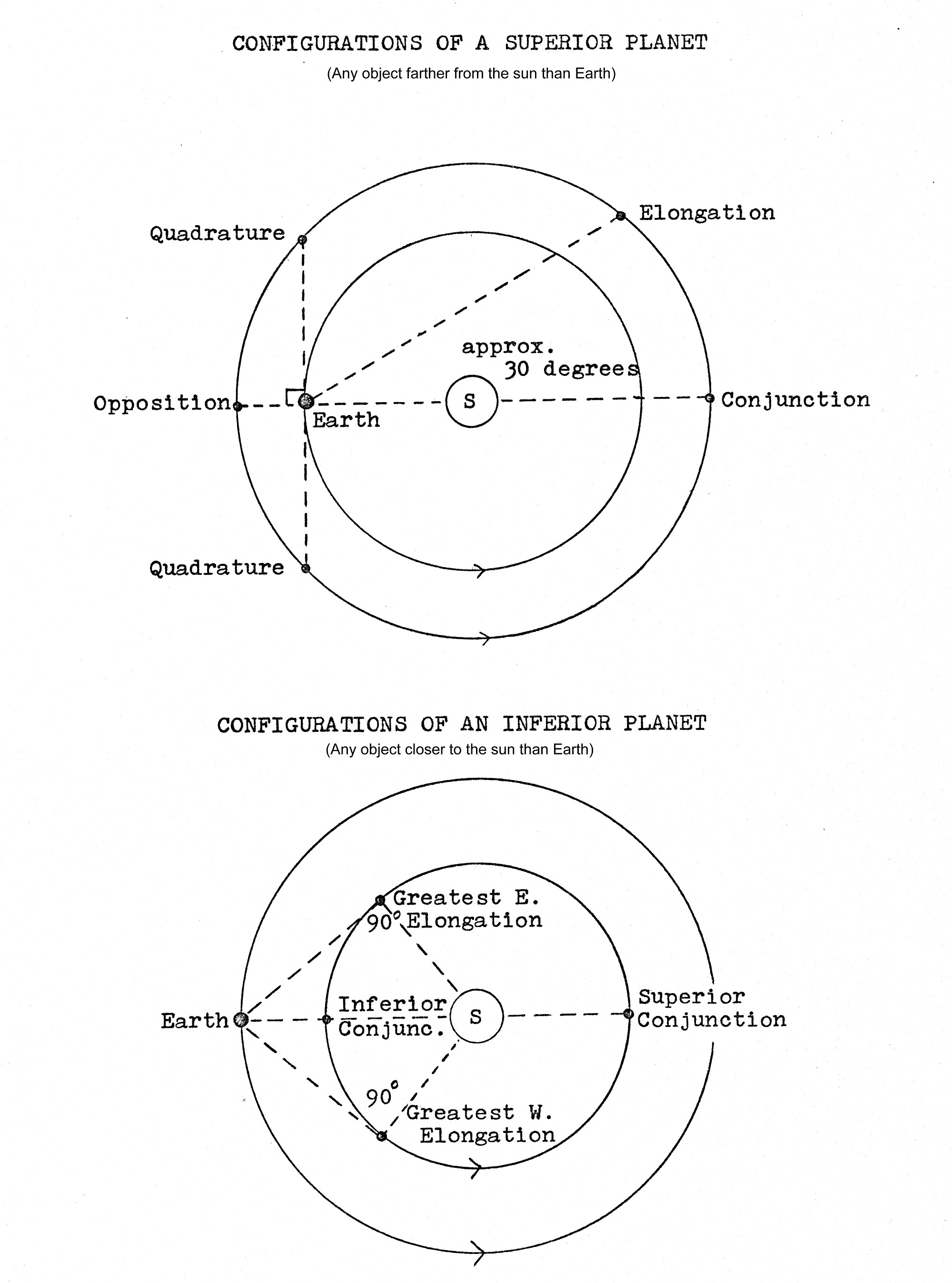

| Planetary Configurations made from class notes in Dr. Carlson R. Chambliss' astronomy class over 55 years ago... Gary A. Becker image... |
![]() |
|---|

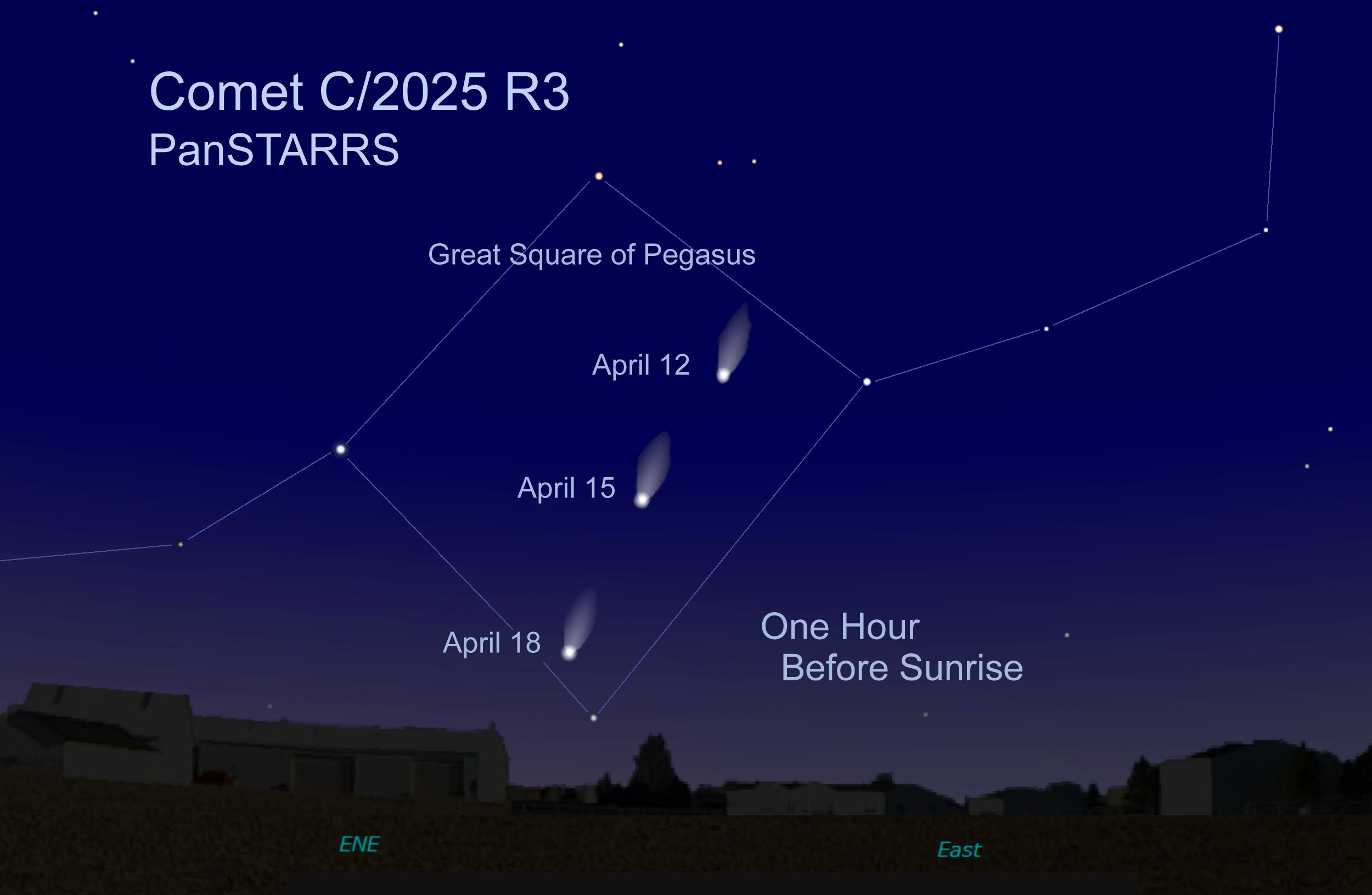

| Comet PanSTARRS. Gary A. Becker map using Software Bisque's The Sky... |
![]() |
|---|
| Venus is rising higher in the spring sky. Gary A. Becker image taken on April 9... |
![]() |
![]() |
